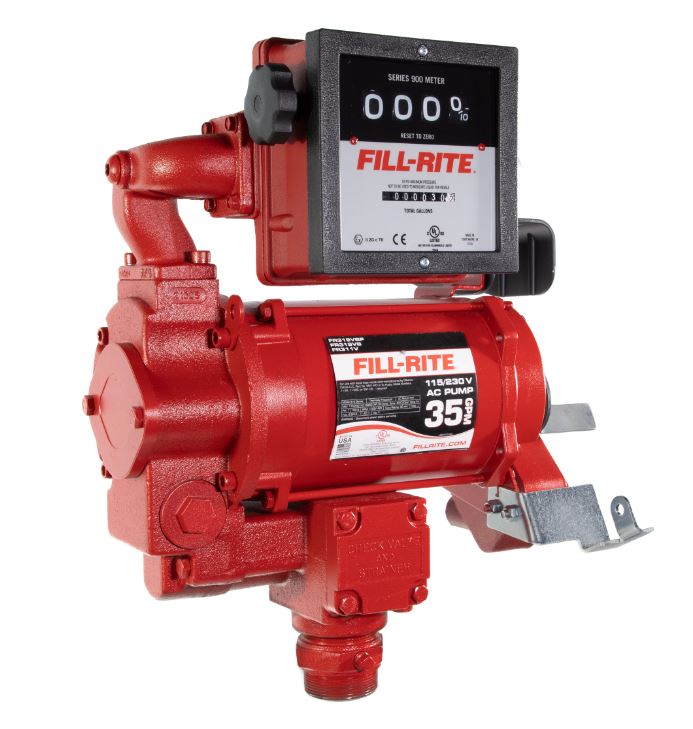

Fill-Rite's 300 Series of heavy-duty fuel transfer pumps features 115V-230V AC dual voltage power input and are built to last with cast-iron construction.

Fill-Rite's 300 Series of heavy-duty fuel transfer pumps features 115V-230V AC dual voltage power input and are built to last with cast-iron construction.

INCLUDES
3/4 X 12’ UL Listed Hose with Static Ground Wire
3/4" Manual Nozzle

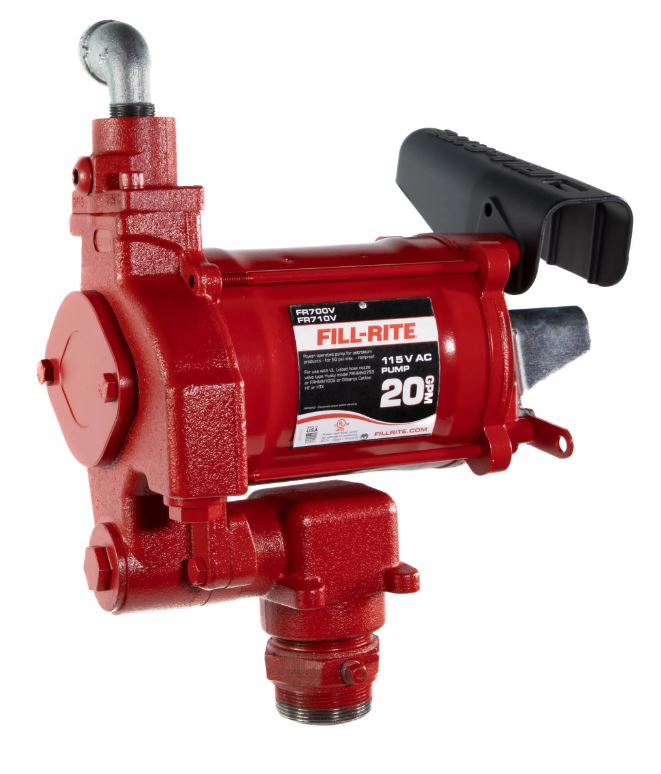

The FR700VN model is a 115V AC, 20 GPM, heavy-duty fuel transfer pump. Pump Only

The FR700V model is a 115V AC, 20 GPM, heavy-duty fuel transfer pump

INCLUDES

Discharge Hose ¾” X 12’ UL Listed Hose with Static Ground Wire
Nozzle ¾” Cast Aluminum Manual Nozzle

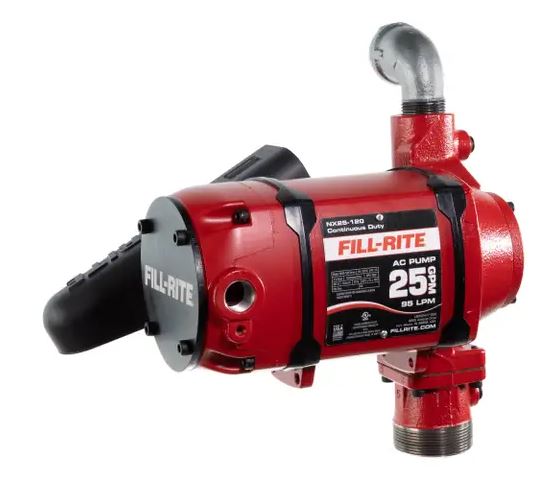

FILL-RITE NX25-120NB 25GPM 120V CONTINOUS DUTY

BARE PUMP

• Max Flowrate 25 GPM / 94 LPM
• Power Type 115V AC
• Compatible Fluids Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
• Inlet Size / Connection / Thread 1.25 " / Female / NPT
• Outlet Size / Connection / Thread 1 " / Female / NPT
• Mounting Size / Thread / Type 2" / NPT / Bung Mount
• Duty Cycle (min) Continuous Duty
• Power Source Electrical
• Motor Power (HP) 0.33
• Max Current (A) 3.5 A
• Thermal Protection Switch --
• Self Priming --
• Suction Lift (ft.) 12 '
• Dry Vacuum (in. Hg) 11
• Operating Temperature Range (°F) --
• Discharge Head (ft) 48 '
• Strainer Mesh Size (Micron) 20 x 20 x .008”
• Max Discharge Pressure (PSI) 25 PSI

FEATURES
UL-CERTIFIED
ALUMINUM MOTOR
EASY-ACCESS FILTER STRAINER
FAN-COOLED MOTOR
NOZZLE HOLDER + SWITCH
OPTIONAL DETACHABLE WIRING BOX

The Piusi EX50 cULus-listed fuel transfer pump is designed for the dispensing of gasoline, diesel and kerosene. The EX50 is a fuel pump designed to last longer and maintain higher flow rates when used with accessories that create resistance. Capable of delivering up to 15 GPM at-the-nozzle.

Available in 12V DC and 120V AC options. Also available as a Transfer Pump Kit equipped with auto-nozzle, delivery hose, and optional meter and/or filter

PIUSI F0032701B 120V 30GPM CONTINOUS DUTY DIESEL PUMP

PORTS 1" FNPT
